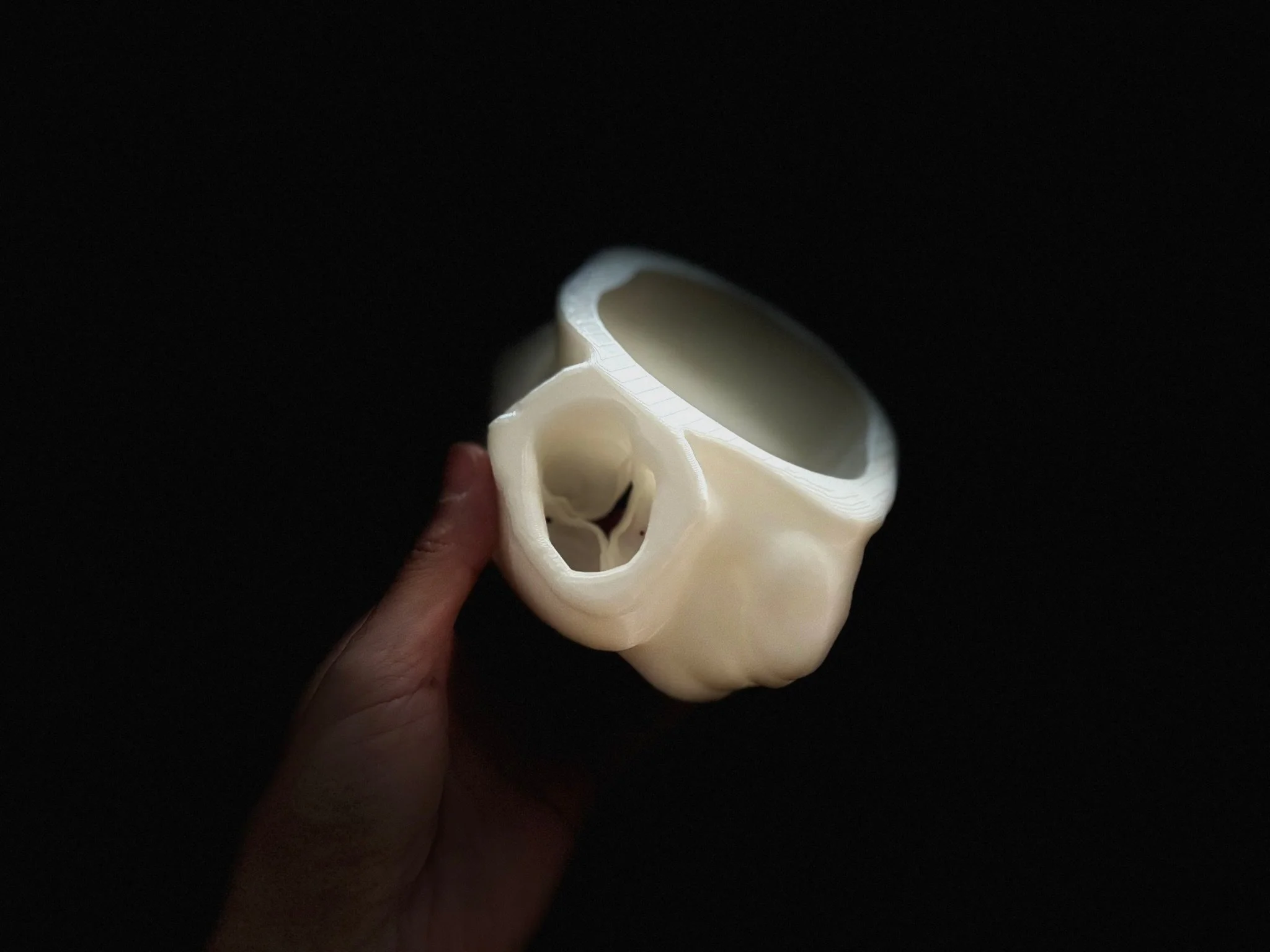

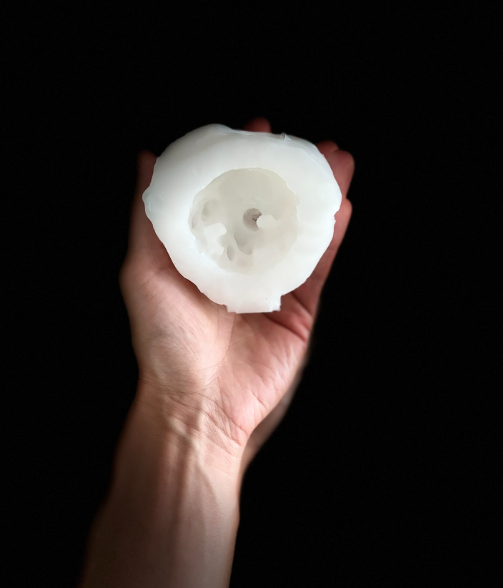

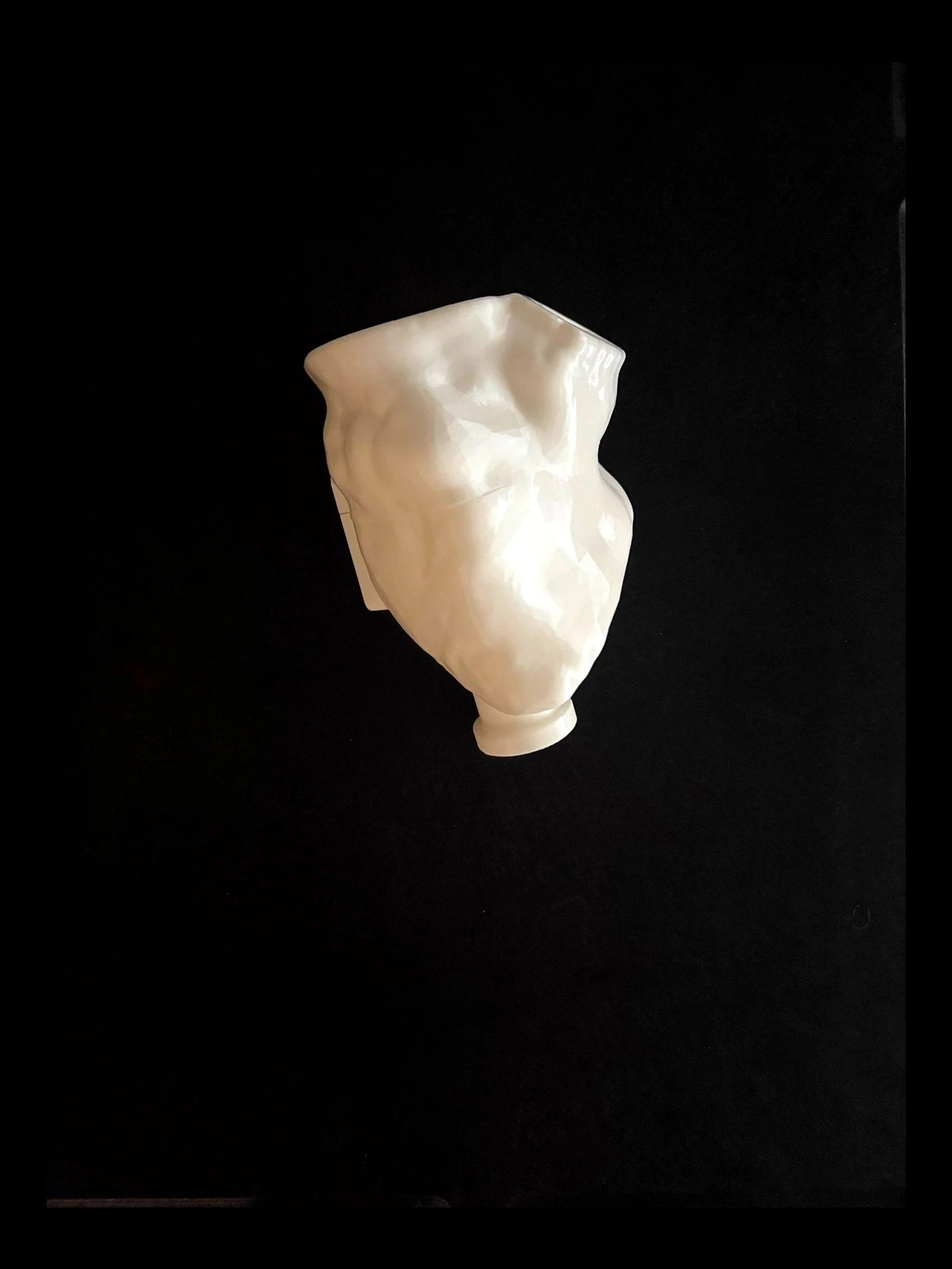

This design captures the left side the heart with the following anatomical features: mitral valve apparatus, left atrial appendage, aortic valve, and left ventricle with trabeculae and papillary muscles. The atrium has been removed.
The flexible materials (hydrogel and silicone) are “beating” capable when integrated with a pulsatile pump.
This design captures the left side the heart with the following anatomical features: mitral valve apparatus, left atrial appendage, aortic valve, and left ventricle with trabeculae and papillary muscles. The atrium has been removed.
The flexible materials (hydrogel and silicone) are “beating” capable when integrated with a pulsatile pump.
